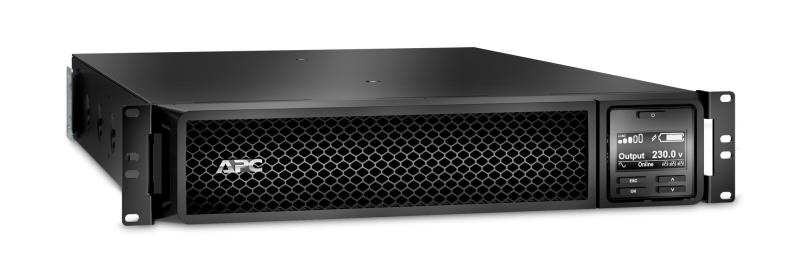

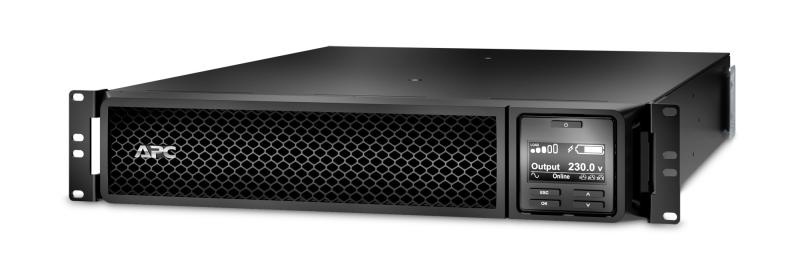

APC Smart-UPS SRT 2200VA RM 230V

Descriere

APC Smart-UPS SRT 2200VA RM 230V

High density, double-conversion on-line power protection with scalable runtime

Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, USB cable, Warranty card

Output power capacity

1.98kWatts / 2.2kVA

Rack Height

2U

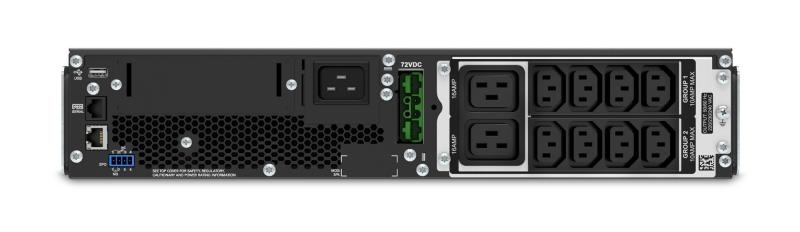

Output Connections

(2) IEC 60320 C19 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

(2) IEC 320 C19 (Battery Backup)

(8) IEC 60320 C13 (Battery Backup)

(8) IEC 320 C13 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P

Cord Length

2.4meters

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Built-in bypass
