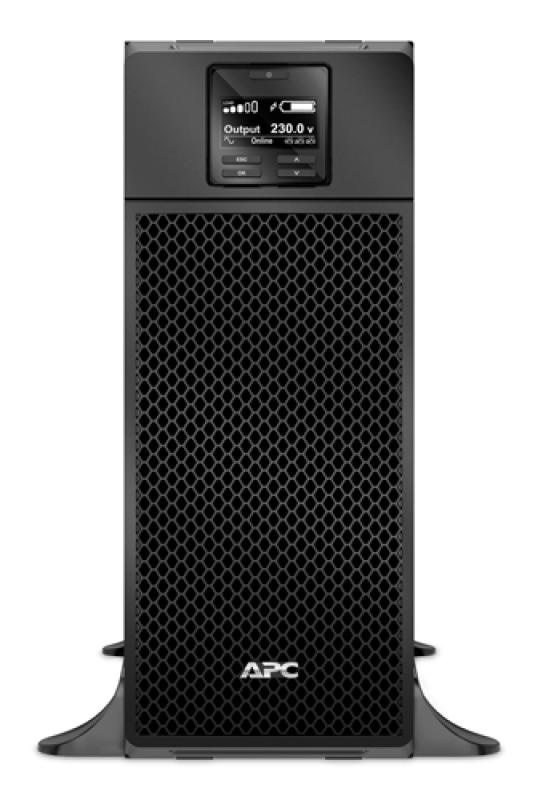

APC SMART-UPS SRT 6000VA RM 230V

Descriere

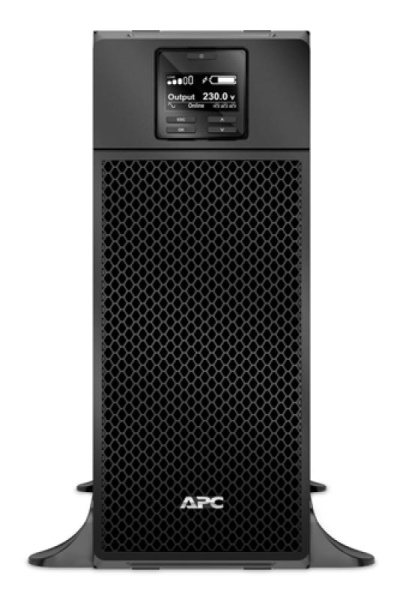

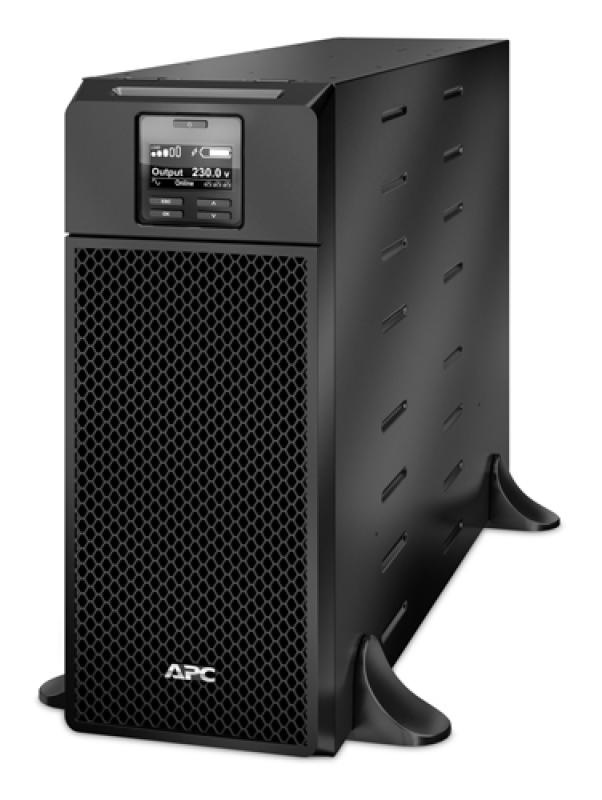

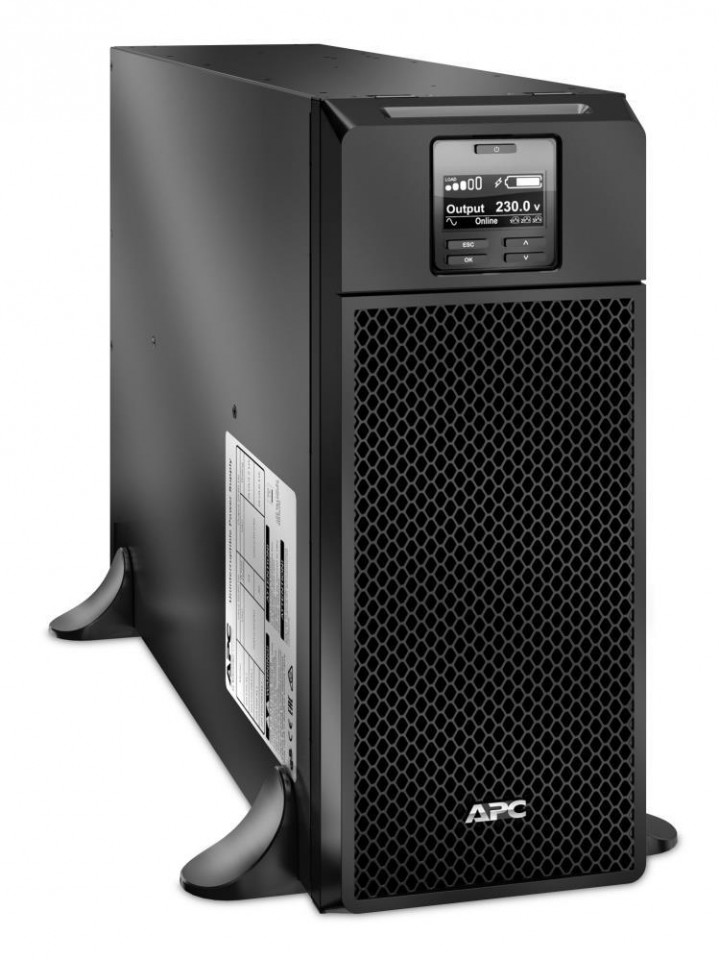

APC Smart-UPS SRT 6000VA 230V

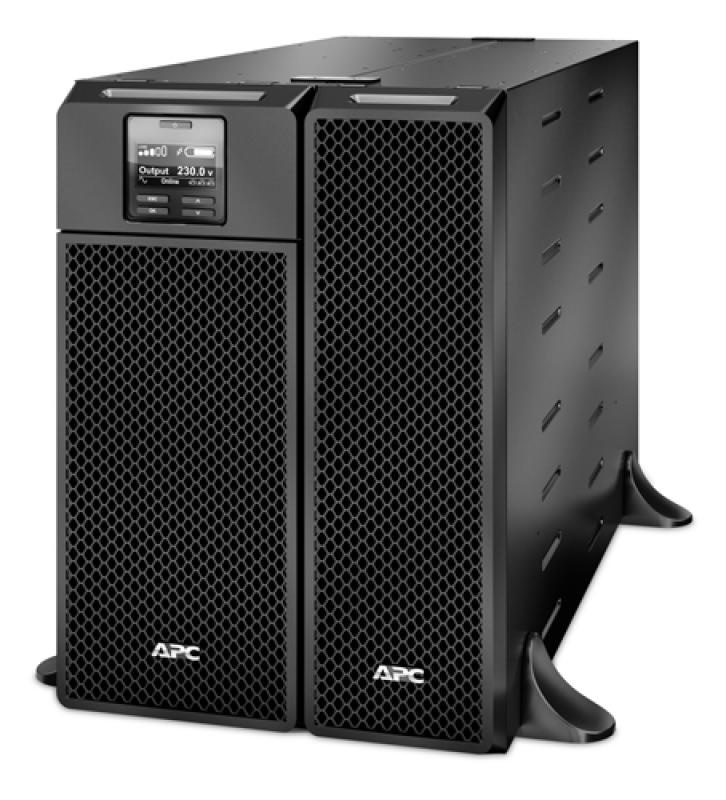

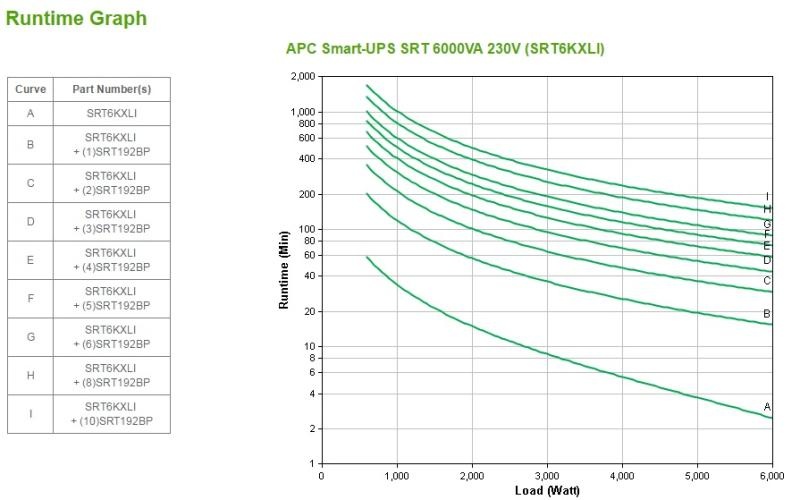

High density, double-conversion on-line power protection with scalable runtime

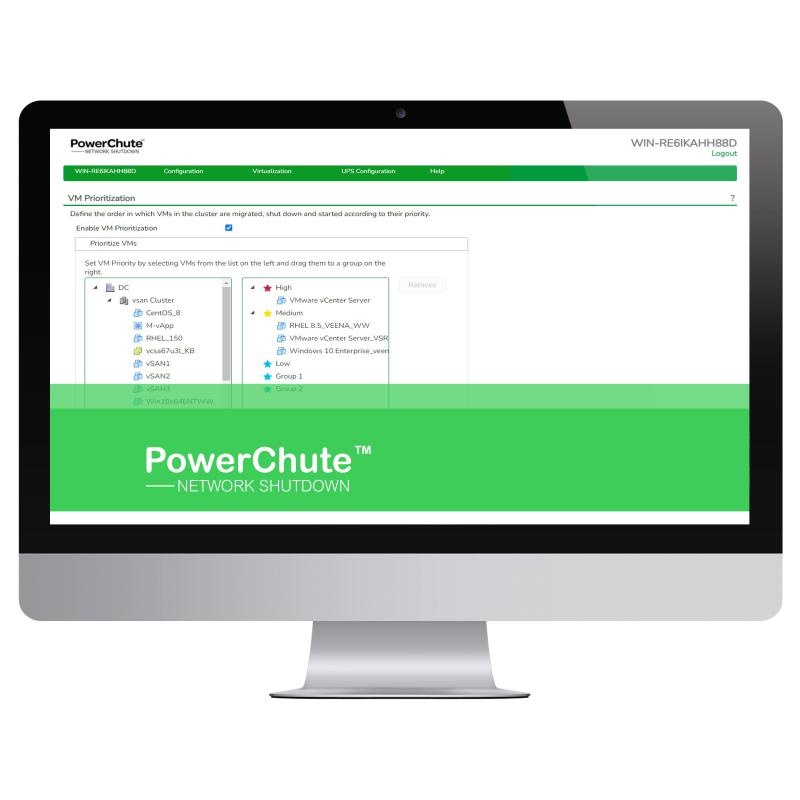

Includes: CD with software, Documentation CD, Installation guide, Removable support feet, Temperature probe, USB cable, Warranty card, Web/SNMP management card

Output power capacity

6.0kWatts / 6.0kVA

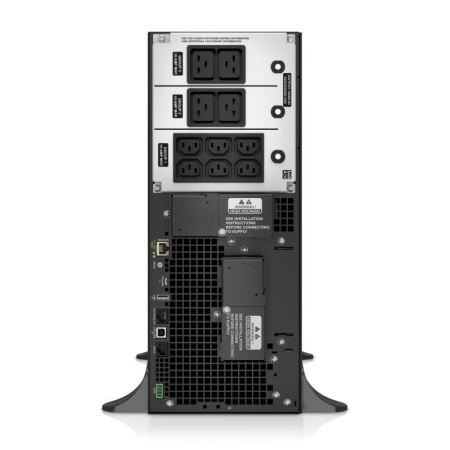

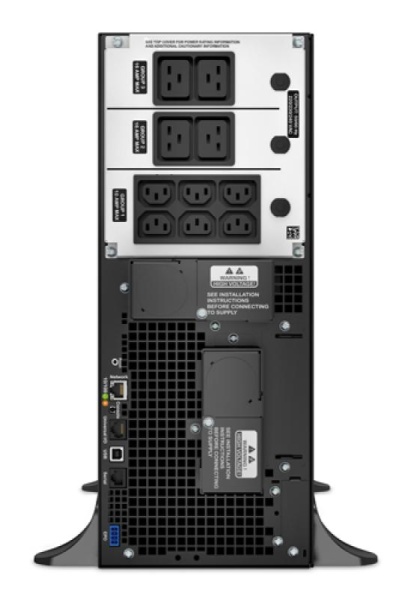

Output Connections

(6) IEC 60320 C13 (Battery Backup)

(6) IEC 320 C13 (Battery Backup)

(1) Hard Wire 3-wire (H N + G) (Battery Backup)

(2) IEC Jumpers (Battery Backup)

(4) IEC 320 C19 (Battery Backup)

(4) IEC 60320 C19 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

Hard wire 3-wire (1P + N + E)

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)
