HYXi 3P SMART METER DTSU666-100A

Descriere

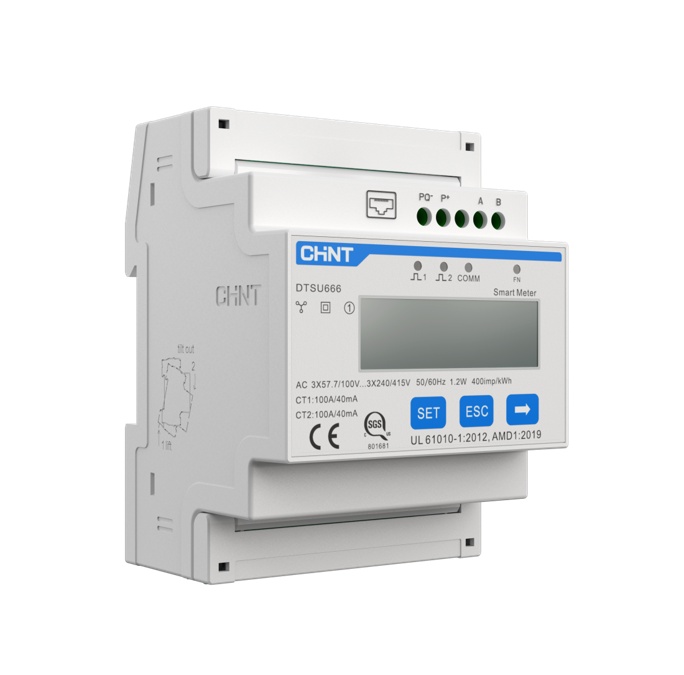

"DTSU666-TC 100 A is a modern three-phase energy meter designed to monitor the operation of PV installations and systems with energy storage. With its high measurement accuracy and RS485 (Modbus-RTU) communication, it works perfectly with Hyxi inverters and other monitoring devices.

The meter records key grid parameters: voltage, current, frequency, active and reactive power, power factor, and the balance of imported and exported energy. When combined with Hyxi HT series inverters, it enables precise control of energy flow between the PV system, the energy storage, and the grid, resulting in increased self-consumption and energy cost optimization.

Its compact design and DIN rail (DIN35) mounting make installation in electrical cabinets easy. The solid construction and compliance with international safety standards ensure reliability and long service life.

Key features of the DTSU666 100 A Hyxi:

Three-phase energy meter for PV and grid systems

Full compatibility with Hyxi inverters (HT series)

Measurement range up to 100 A

High measurement accuracy (class 1, ±1%)

Bidirectional energy measurement (import/export)

RS485, Modbus-RTU communication – integration with inverters and monitoring systems

LCD display with real-time parameter viewing

DIN35 rail mounting – quick and convenient installation

Solid construction and long service life

Meter with a set of CT transformers."
