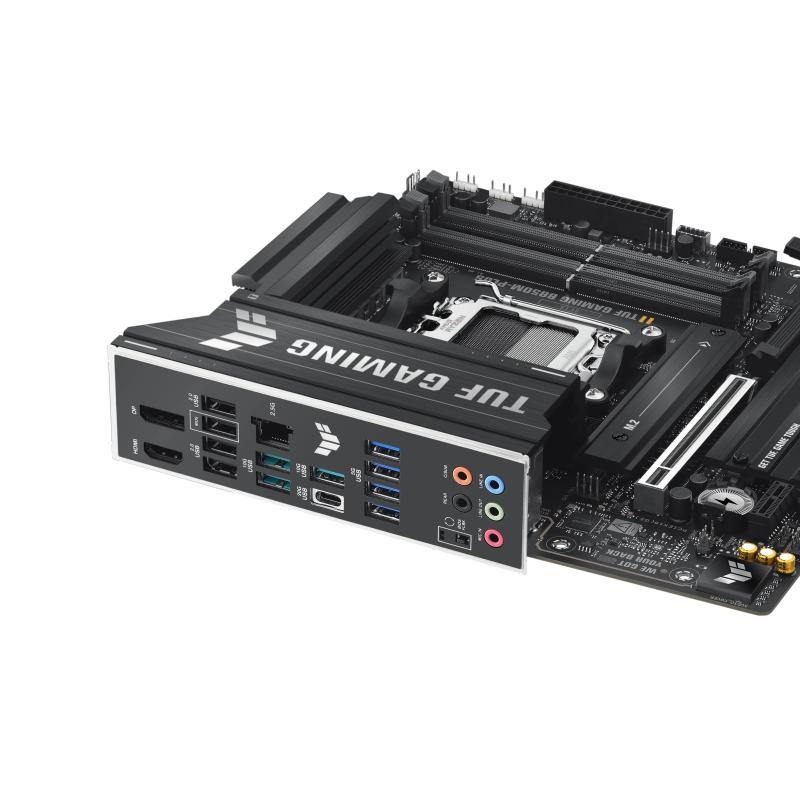

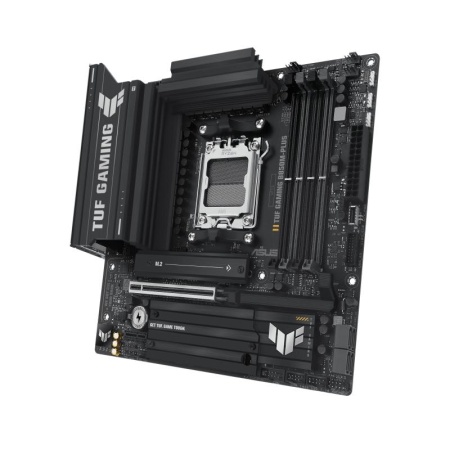

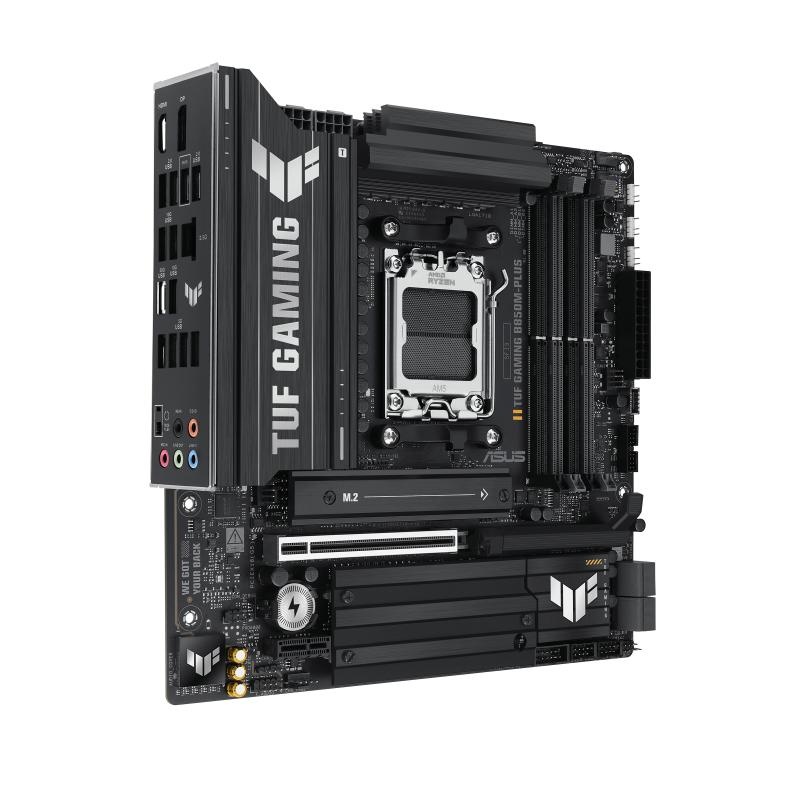

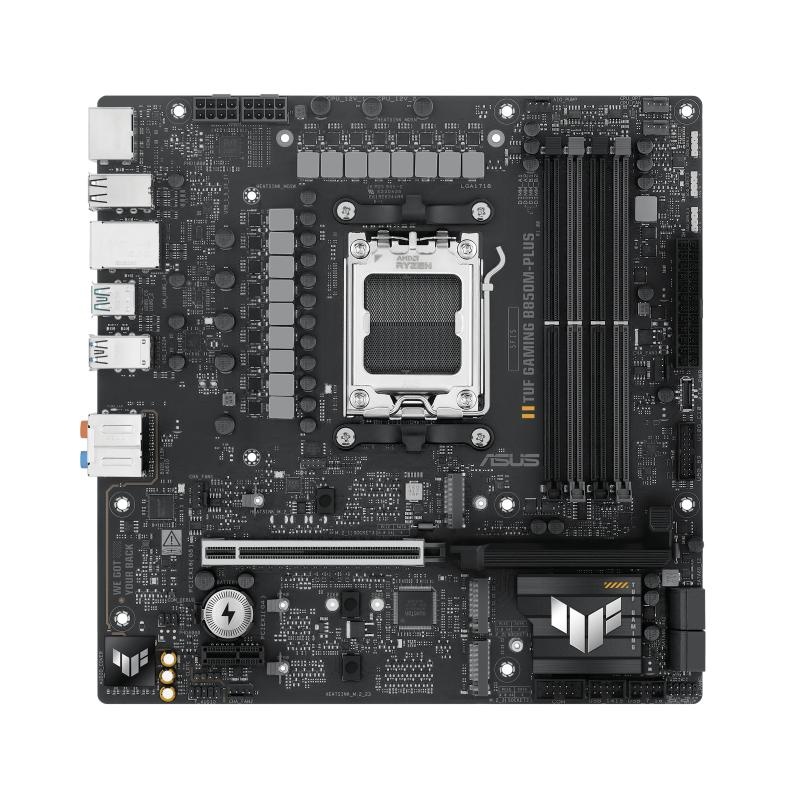

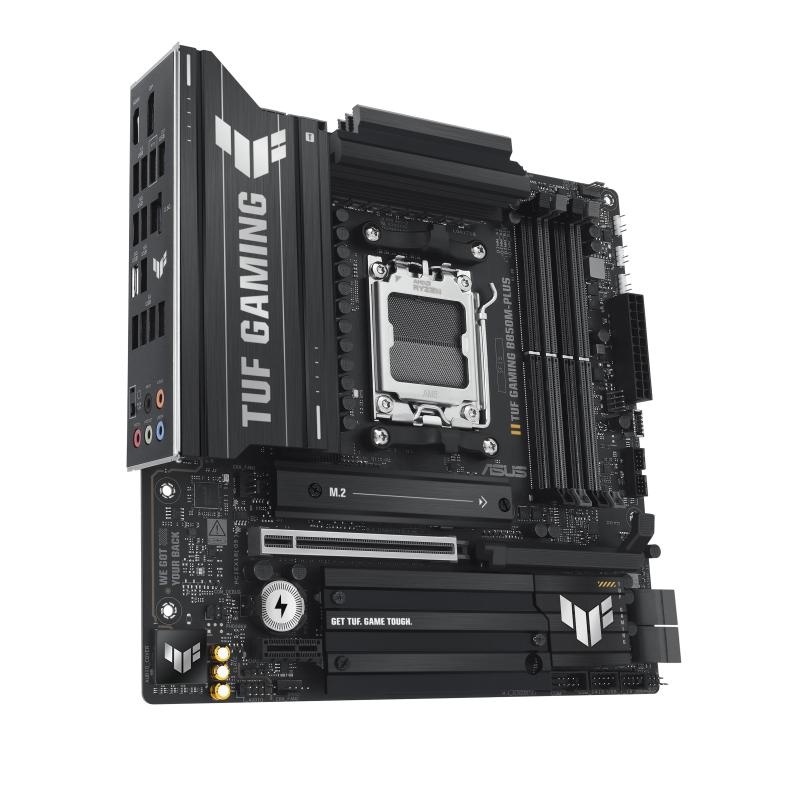

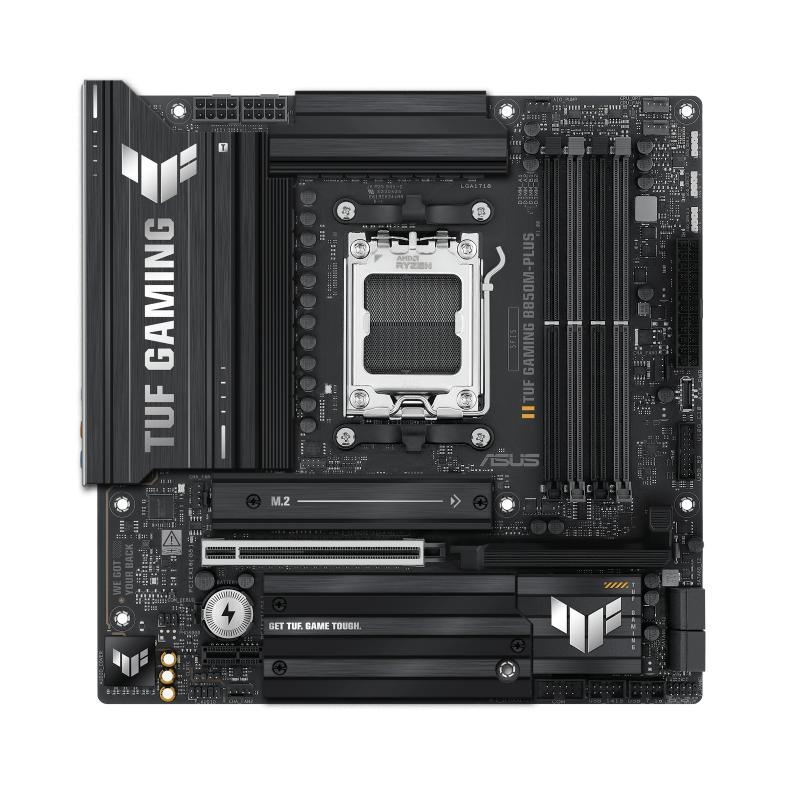

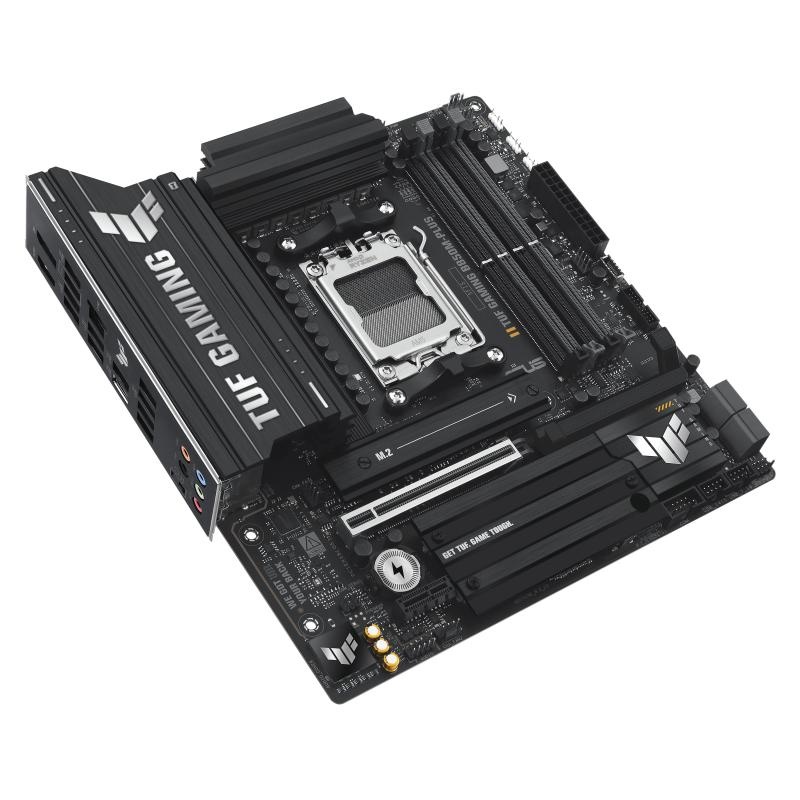

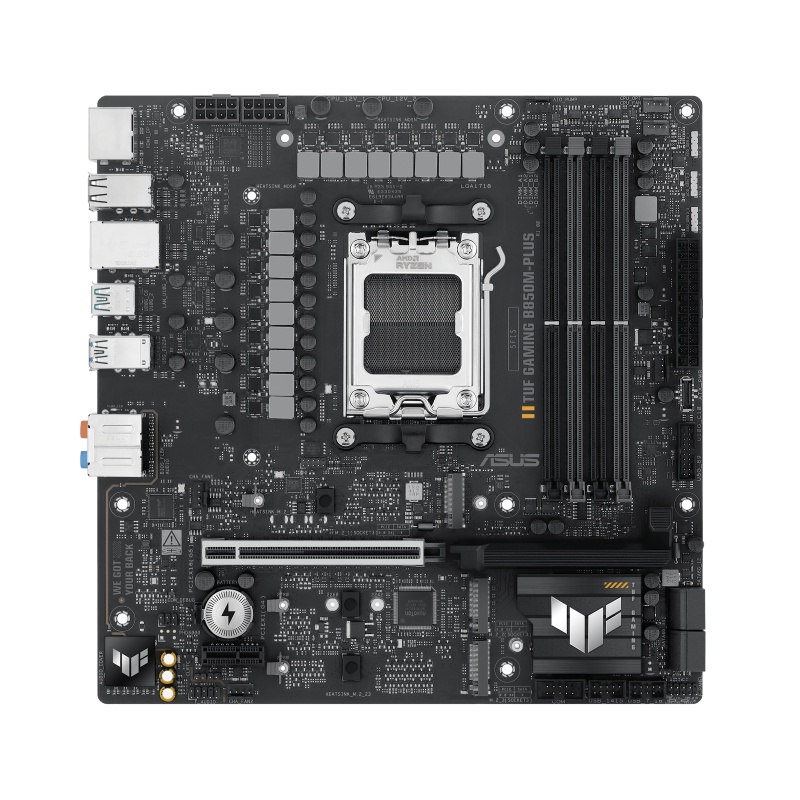

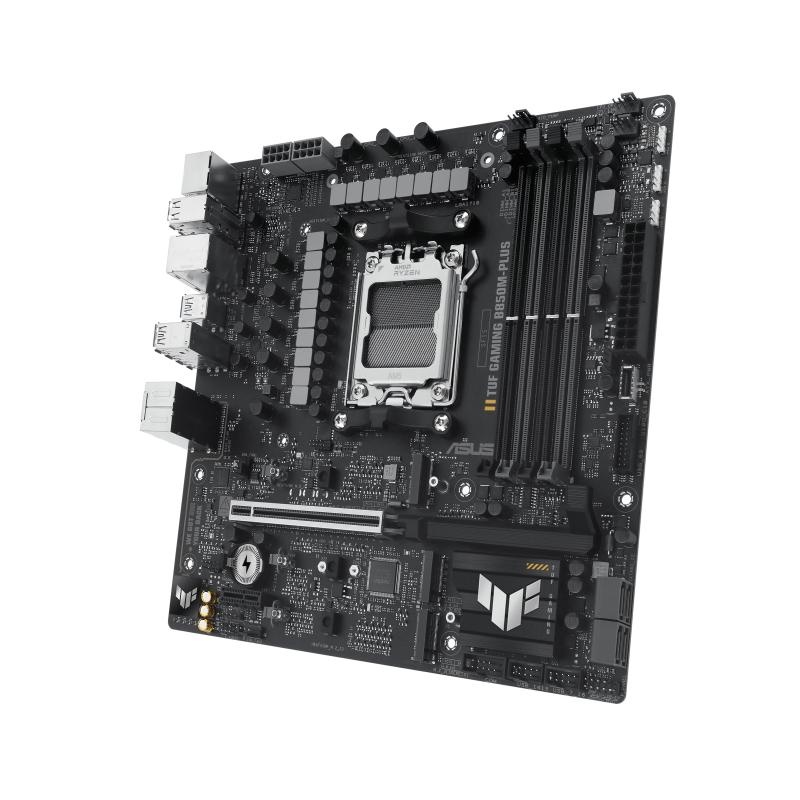

MB Asus TUF GAMING B850M-PLUS
1.250,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Detalii
SKU
TUF GAMING B850M-PLUS
EAN
4711387775172
Categorii
Brand
Wi-Fi
No
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
PCI Express x16 (Gen 5.x) slots
1

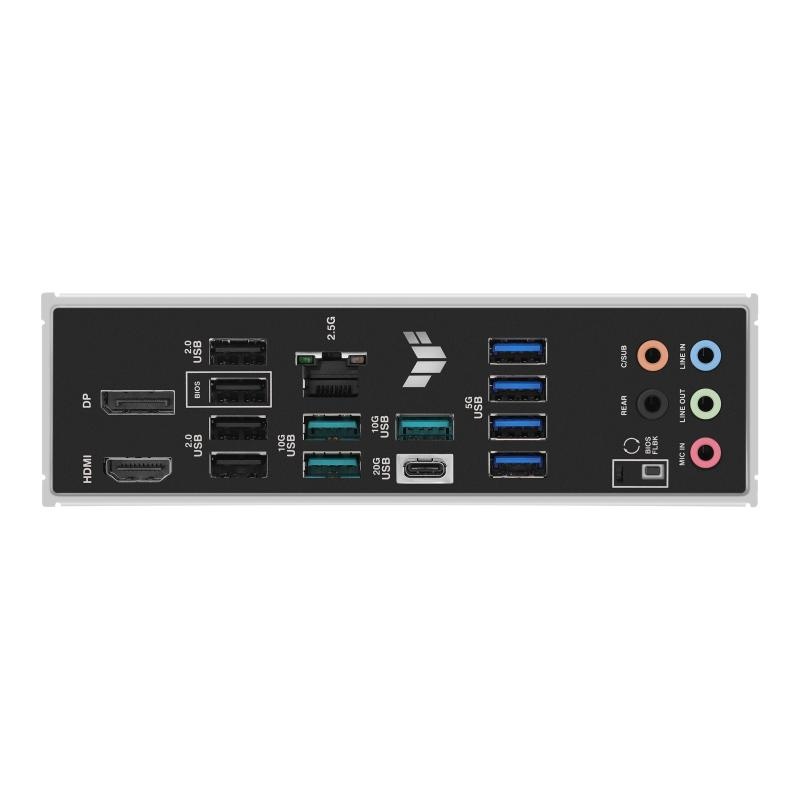

Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Processor manufacturer
AMD
Memory channels
Dual-channel
RAID support
Yes
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Number of M.2 (M) slots
3
1st M.2 highest PCI Express generation
5.0
2nd M.2 highest PCI Express generation
4.0
3rd M.2 highest PCI Express generation
4.0
Motherboard chipset family
AMD
Component for
PC
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Front panel connector
Yes
12V power connector
Yes
Number of chassis fan connectors
3
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
7
Supported storage drive interfaces
M.2, SATA III
Depth
244 mm
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Motherboard form factor
micro ATX
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
S/PDIF out connector
Yes
ECC сompatibility
ECC & Non-ECC
RAID levels
0, 1, 5, 10
Width
244 mm
Motherboard chipset
AMD B850
Windows operating systems supported
Windows 10 x64, Windows 11
Number of COM connectors
1
Chassis intrusion connector
Yes
Ethernet interface type
2.5 Gigabit Ethernet
3rd M.2 largest key size
2280
Maximum internal memory
192 GB
Cables included
SATA
WiFi-AP antenna jack
1
PCI Express x1 (Gen 4.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Package depth
275 mm
Package width
275 mm
Package height
67.5 mm
Audio Chip
Realtek ALC1220P
Weight
1.19 kg
Package weight
1.65 kg
