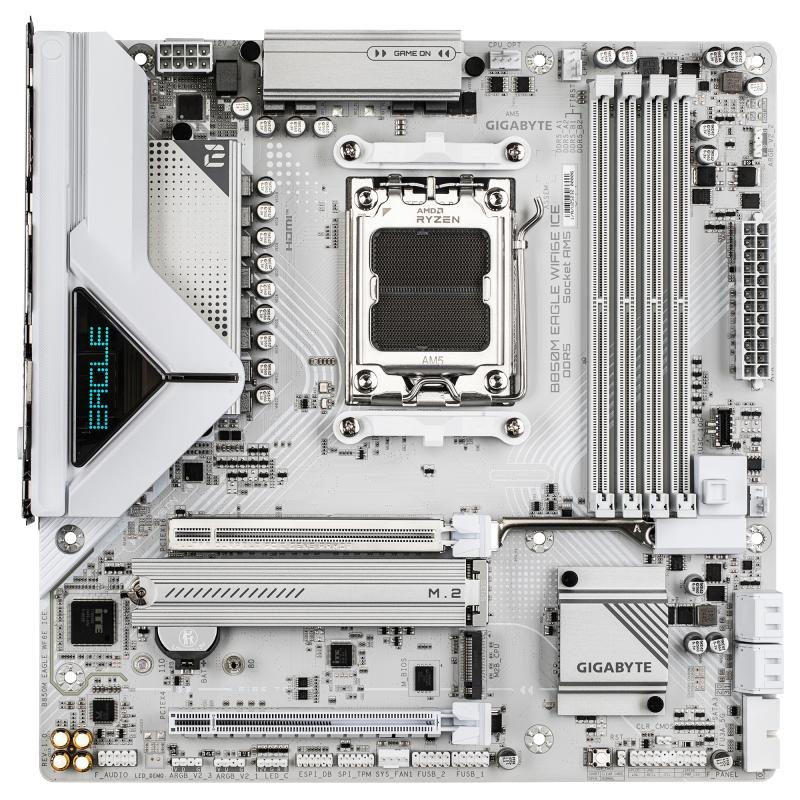

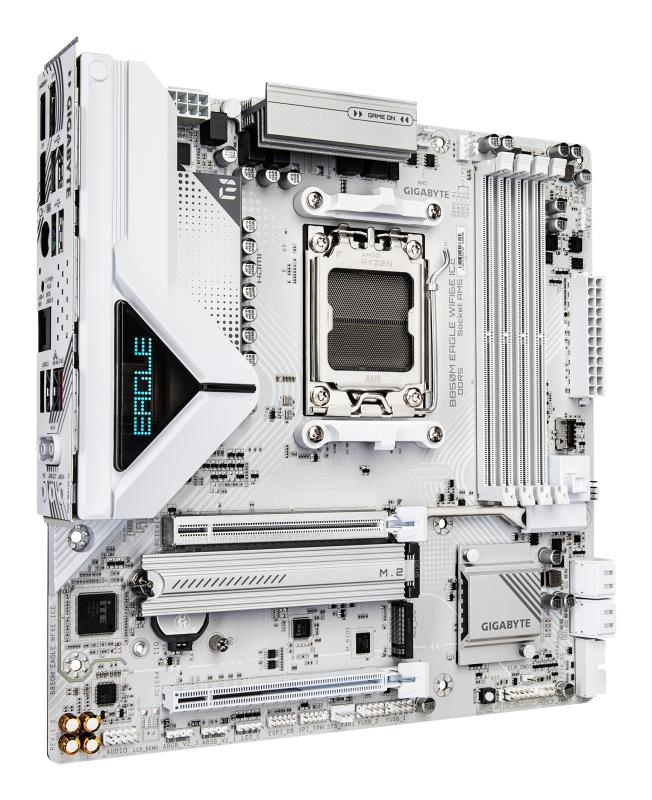

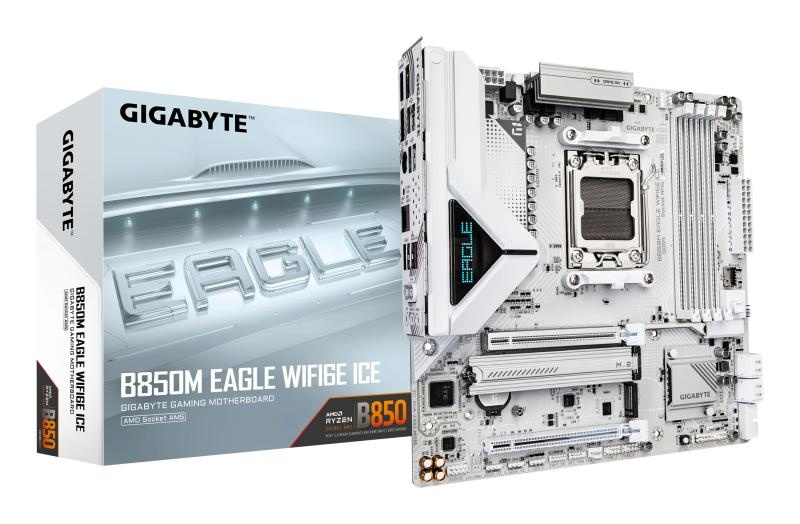

MB Gigabyte B850M EAGLE WF6E ICE
1.005,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Detalii
SKU
B850M EAGLE WF6E ICE
EAN
4719331871789
Categorii
Brand
Wi-Fi
Yes
PCI
0
Serial-or-Paralel
No/No
USB3
4-8
PCI-Ex1
0
PCI-Ex16
2
Onboard-CPU
No
Product colour
White
PCI Express x16 (Gen 5.x) slots
1
Bluetooth version
5.3
BLUETOOTH
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Ethernet LAN
Yes
DisplayPorts quantity
2
Line-in
Yes
DisplayPort version
1.4
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI version
2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
4
Processor manufacturer
AMD
Memory channels
Dual-channel
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Microphone in
Yes
RAID support
Yes
Country of origin
China
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Component for
PC
Audio output channels
7.1 channels
HDCP
Yes
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
Number of EPS power connectors (8-pin)
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Products per shipping (inner) case
1 pc(s)
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Antenna included
Yes
Screws included
Yes
Warranty period
3 year(s)
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Depth
244 mm
Height
35 mm
RAM-Slots
4
MB-Socket
AM5
Cooling type
Passive
Number of M.2 (M) slots
2
Motherboard form factor
micro ATX
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of chassis fan connectors
2
Number of storage drives supported
6
RAID levels
0, 1, 5, 10
MB-Format
micro-ATX
PS/2 ports quantity
1
Width
244 mm
Motherboard chipset
AMD B850
Ethernet interface type
2.5 Gigabit Ethernet
PCI Express x16 (Gen 3.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
WLAN controller model
Realtek RTL8852CE
Supported memory clock speed (max)
8200 MHz
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported memory clock speeds
8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Package weight
1.9 kg
Weight
1.7 kg
