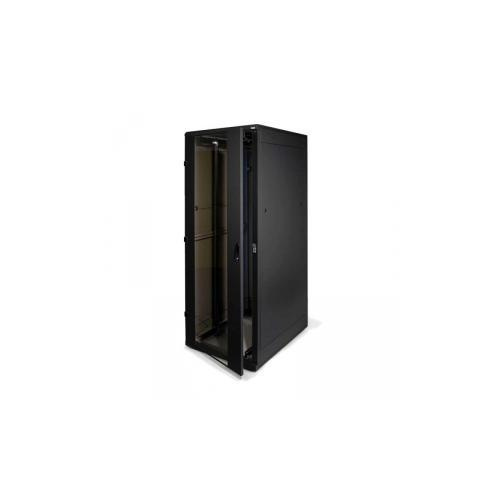

TRITON RACK PODEA 19" 42U 800X1000 NEGRU

Περιγραφή

• 19“ free-standing cabinet with IP20 protection.
• Cabinet includes 4 adjustable vertical rails for device mounting (6 rails for cabinets deeper than 800 mm).
• Cabinet construction:
  – welded steel frame with removable side panels,
  – single or double doors in versions of solid metal, perforated (80 % and 86 % air permeability) or glazed with safety tempered glass 4 mm (they can be on the front or back of the cabinet),
  – ready for installation of vertical cable management panels and power distribution units including mounting brackets into the skeleton of the cabinet,
  – preparation for easy joining of cabinets into larger assemblies.
• Max. permissible load of the door is 20 kg.
• Min. thickness of the surface finish is 65 µm.
• These cabinets are intended for installation data and telecommunication devices and their distribution systems.
• The frame of the cabinet and all the removable parts (side and rear covers, doors…) are bonded with flexible cables that have to be properly fixed and inserted into connectors throughout the period of use of the cabinet.
• There is one M8 screw placed on the bottom part of the cabinet as a central earthing point..
• Cable openings covered with breakout-type blanking panels are placed in the top and the bottom part of the cabinet.
• The maximum recommended static load of the cabinet is 800 kg using levelling feet or a base.
