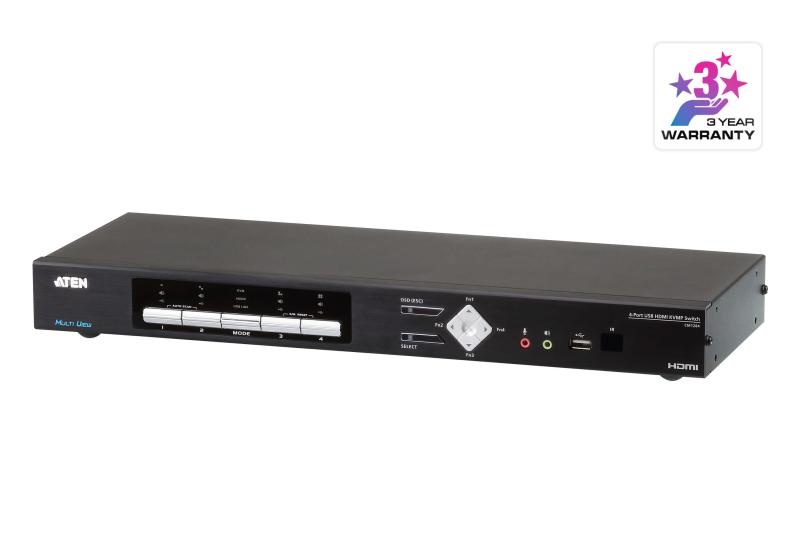

4-Port USB HDMI Multi-View KVMP Switch
RON 18,592.00
(VAT included)
shipping cost is not included
How can we help?
Details
SKU
CM1284-AT-G
EAN
4719264647505
Categories
Brand
Video port type
HDMI
Push button
Yes
Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Audio connections
Yes
USB 2.0 Type-A hub ports quantity
2
Console USB ports quantity
2
Cascadable
Yes
Scan interval
5,10,15,30,60,90 s
Video bandwidth
30 Hz
Console ports
3.5mm headphone, HDMI, RJ–45, USB A
Number of microphone inputs
6
KVM-Type
Analog
Operating temperature (T-T)
0 - 40 C
Weight
3.86 kg
Products per master (outer) case
3 pc(s)
Product colour
Black
Package depth
540 mm
Storage temperature (T-T)
-10 - 60 C
Package height
233 mm
Master (outer) case width
420 mm
Master (outer) case length
555 mm
Master (outer) case height
258 mm
Depth
164 mm
Width
437.2 mm
Height
44 mm
Package width
131 mm
Package weight
4.26 kg
Master (outer) case gross weight
13.8 kg
Ethernet LAN
Yes
HDMI ports quantity
6
Ethernet LAN (RJ-45) ports
2
Compliance certificates
RoHS
HD type
4K Ultra HD
Harmonized System (HS) code
85176200
Operating relative humidity (H-H)
0 - 80%
AC adapter included
Yes
Housing material
Metal
Cables included
HDMI, USB
Rack mounting
Yes
Hot-Plug support
Yes
LED indicators
Yes
Master (outer) case net weight
11.6 kg
Built-in display
No
AC input frequency
50 - 60 Hz
Power consumption (typical)
16 W
Maximum resolution
4096 x 2160 pixels
USB hub
Yes
Power source
AC
HDCP
Yes
Headphone outputs
6
USB connector type
USB Type-A, USB Type-B
Input current
1 A
On Screen Display (OSD)
Yes
Manual
Yes
Hot keys
Yes
Daisy chain
Yes
Rack mount kit
Yes
Firmware upgradeable
Yes
Input voltage
110 - 220 V
Rack capacity
1U
USB 2.0 Type-B ports quantity
4
