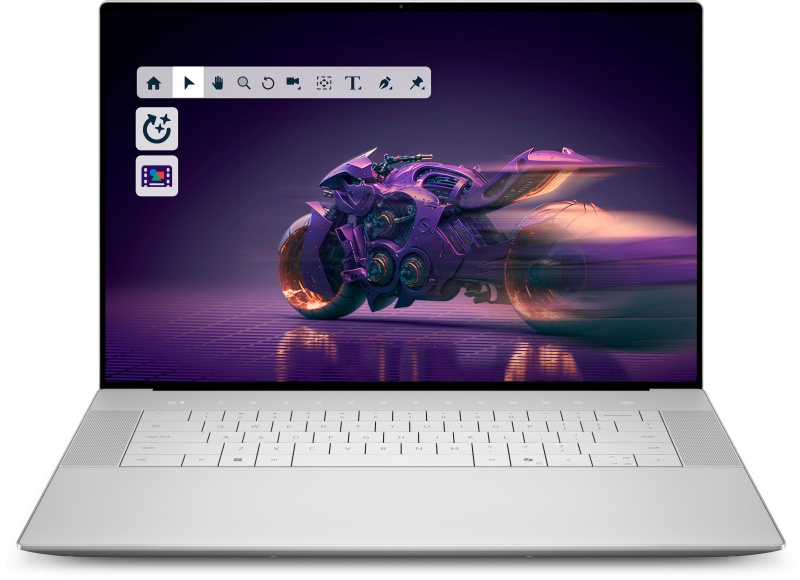

DL DA16250 OLEDT U9-285H 32 1 RTX5060 WP
RON 24,465.00
(VAT included)
shipping cost is not included
How can we help?
Details
SKU
DA16250_ARLH_008
EAN
1025551743
Categories
Brand
Touchscreen
Yes
BLUETOOTH
Yes
Form factor
Clamshell
Operating temperature (T-T)
0 - 35 C
Weight
2.33 kg
Product colour
Platinum
Internal memory type
LPDDR5x-SDRAM
Memory form factor
On-board
Storage temperature (T-T)
-40 - 65 C
Memory data transfer rate
7467 MT/s
Depth
240.1 mm
Width
358.2 mm
Product type
Laptop
Audio Chip
Cirrus Logic CS42L43
On-board graphics card model
Intel Arc 140T
Discrete graphics card memory
8 GB
On-board graphics card family
Intel Arc Graphics
Discrete graphics card model
NVIDIA GeForce RTX 5060
On-board graphics card
Yes
On-board GPU manufacturer
Intel
Discrete graphics card
Yes
Discrete GPU manufacturer
NVIDIA
Discrete graphics memory type
GDDR7
Maximum internal memory
32 GB
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Antenna type
2x2
WLAN controller model
Intel Wi-Fi 7 BE201
WLAN controller manufacturer
Intel
Ethernet LAN
No
Motherboard chipset
Intel SoC
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
Combo headphone/mic port
Yes
HDMI ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Performance-core base frequency
2.9 GHz
Efficient cores
8
Efficient-core Max Turbo Frequency
4.5 GHz
Processor generation
Intel Core Ultra (Series 2)
Processor model
285H
Processor threads
16
Processor base power
45 W
Maximum turbo power
115 W
Processor boost frequency
5.4 GHz
Performance-core Max Turbo Frequency
5.4 GHz
Performance cores
6
Efficient-core base frequency
2.7 GHz
Processor manufacturer
Intel
Processor family
Intel Core Ultra 9
Processor cores
16
Processor cache
24 MB
Operating system installed
Windows 11 Pro
Total SSDs capacity
1 TB
SSD interface
PCI Express 4.0
SSD form factor
M.2
NVMe
Yes
Storage media
SSD
Optical drive type
No
Number of SSDs installed
1
Total storage capacity
1 TB
SSD capacity
1 TB
Fingerprint reader
Yes
Number of built-in speakers
4
Built-in microphone
Yes
Battery capacity
99.5 Wh
Number of battery cells
6
Battery technology
Lithium-Ion (Li-Ion)
Front camera HD type
Full HD
Front camera
Yes
Carbon emissions, logistics (kg of CO2e)
18.564
Carbon emissions, manufacturing (kg of CO2e)
294.112
Total carbon footprint (kg of CO2e)
364
Panel type
OLED
RGB colour space
DCI-P3
Colour gamut
100%
Display resolution
3840 x 2400 pixels
HD type
4K Ultra HD
Display brightness
400 cd/m
Display diagonal
41.4 cm (16.3)
Numeric keypad
No
Keyboard backlit
Yes
Pointing device
Touchpad
Mobile network connection
No
Neural processor unit (NPU)
Intel AI Boost
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
USB Power Delivery (USB PD)
Yes
USB Type-C DisplayPort Alternate Mode
Yes
AC adapter frequency
50/60 Hz
AC adapter power
130 W
AC adapter input voltage
100 - 240 V
Low Power Efficient-cores
2
Low Power Efficient-core Max Turbo Frequency
2.5 GHz
Low Power Efficient-core Base Frequency
1000 MHz
Height (front)
6.64 mm
Height (rear)
1.87 cm
Battery weight
380 g
Native aspect ratio
16:10
Display bezel technology
InfinityEdge
Card reader integrated
Yes
Operating relative humidity (H-H)
10 - 90%
Front camera resolution (numeric)
2.07 MP
Infrared (IR) camera
Yes
Thunderbolt 4 ports quantity
3
Fast charging
Yes
Maximum refresh rate
120 Hz
AC adapter included
Yes
USB Type-C charging port
Yes
Memory channels
Dual-channel
Intel Thunderbolt 4
Yes
Operating system architecture
64-bit
Speakers manufacturer
Waves
Audio system
MaxxAudio Pro
Contrast ratio (typical)
1000000:1
Total processor performance up to
99 TOPs
NPU performance up to
13 TOPs
Front camera resolution
1920 x 1080 pixels
Battery voltage
11.7 V
Battery recharge time
2 h
Video capturing speed
30 fps
Carbon emissions, energy usage (kg of CO2e)
49.14
Carbon emissions, end-of-life (kg of CO2e)
2.18
PAIA version
PAIA 1.4.7, 2025
Pixel density
278.1 ppi
Storage relative humidity (H-H)
0 - 95%
Operating altitude
-15.2 - 3048 m
Non-operating altitude
-15.2 - 10668 m
Operating shock
110 G
Non-operating shock
160 G
Operating vibration
0.66 G
Non-operating vibration
1.3 G
Ambient light sensor
Yes
Trial software
McAfee+ Premium 1-year,Activate Your Microsoft 365 For A 30 Day Trial
Brand specific technologies
Express Charge Boost capable
Low Blue Light technology
Yes
Wi-Fi band
Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi data rate (max)
5800 Mbit/s
USB charging voltage
5,9,15,20 V
USB charging current
3 A
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
GPU performance up to
77 TOPs
Anti-reflective coating
Yes
Keyboard language
English
USB Type-C required charging power (max)
130 W
USB Type-C required charging power (min)
45 W
Total carbon emissions, standard deviation (kg of CO2e)
66
Display response rise/fall
2 ms
Anti-smudge coating
Yes
