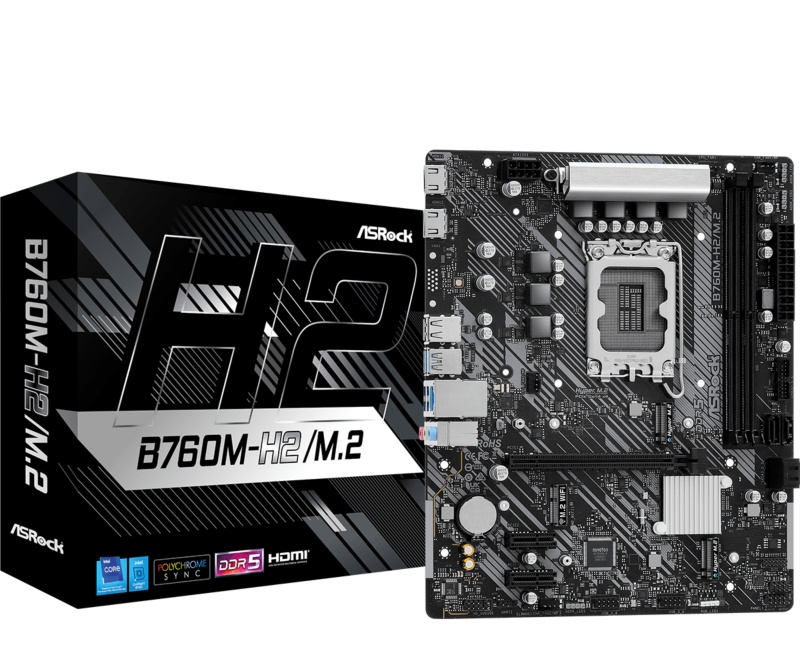

MB Asrock B760M-H2/M.2 DDR5
RON 513.00
(VAT included)
RON 577.64
shipping cost is not included
Buy now, pay later
Show more
How can we help?
Details
SKU
B760M-H2/M.2
EAN
4710483944215
Categories
Brand
Wi-Fi
No
PCI
0
PCI-Ex1
2
PCI-Ex16
1
Serial-or-Paralel
No/No
USB3
4-8
Onboard-CPU
No
Component for
PC
Depth
201 mm
Width
244 mm
PCI Express x1 (Gen 3.x) slots
2
Audio Chip
Realtek ALC897
Maximum internal memory
128 GB
Ethernet LAN
Yes
Motherboard chipset
Intel B760
USB 2.0 ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
2
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Processor manufacturer
Intel
HDMI version
2.1
Memory slots type
DIMM
PCI Express x16 (Gen 4.x) slots
1
VGA (D-Sub) ports quantity
0
Memory channels
Dual-channel
Cables included
SATA
Microphone in
Yes
RAID support
Yes
Number of HDDs supported
6
Ethernet interface type
2.5 Gigabit Ethernet
Maximum number of SMP processors
1
RAID levels
0, 1, 5, 10
Audio output channels
7.1 channels
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Certification
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Number of M.2 (M) slots
2
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
HDCP
Yes
Parallel processing technology support
Not supported
Front panel connector
Yes
TPM connector
Yes
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
2
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Supported memory clock speeds
5600,6800,7200 MHz
Supported memory clock speed (max)
7200 MHz
ECC сompatibility
Non-ECC
DVI-D ports quantity
0
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Compatible processor series
Intel Core™ i3, Intel Core™ i5, Intel Core™ i7, Intel Core™ i9
Number of storage drives supported
4
Supported storage drive interfaces
M.2, SATA III
MB-Format
micro-ATX
RAM-Slots
2
MB-Socket
1700
PS/2 ports quantity
1
Chassis intrusion connector
Yes
Maximum internal memory supported by processor
128 GB
Total number of SATA connectors
4
