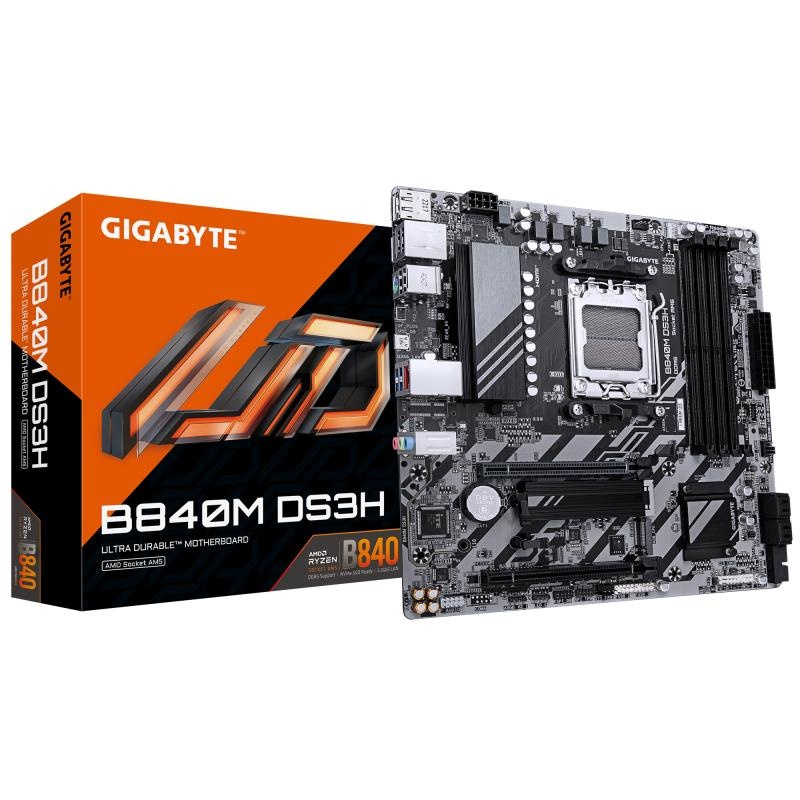

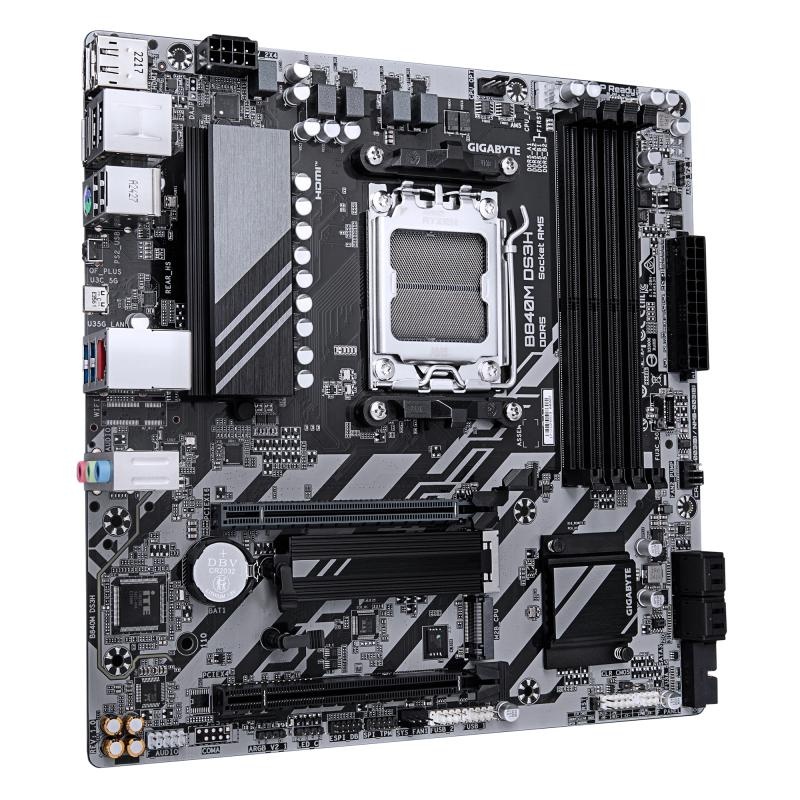

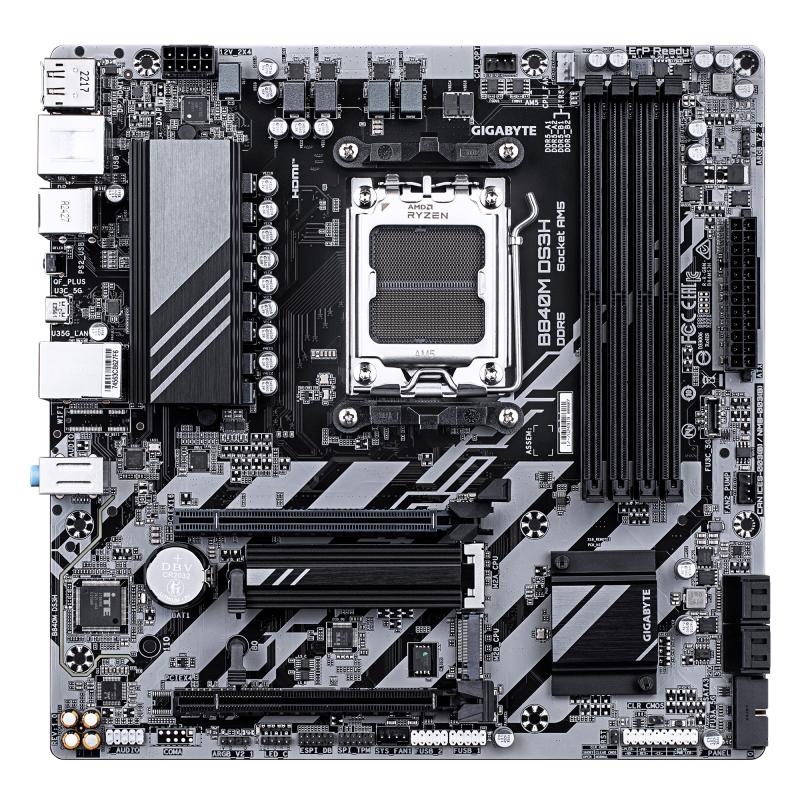

MB GIGABYTE B840M DS3H AM5
RON 689.00
(VAT included)
shipping cost is not included
Buy now, pay in 30 days
Show more
How can we help?
Details
SKU
B840M DS3H
EAN
4719331868437
Categories
Brand
Wi-Fi
No
PCI
0
Serial-or-Paralel
No/No
USB3
4-8
PCI-Ex1
0
PCI-Ex16
2
Onboard-CPU
No
Ethernet LAN
Yes
DisplayPorts quantity
2
Line-in
Yes
DisplayPort version
1.4
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI version
2.1
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 2.0 ports quantity
4
Processor manufacturer
AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Memory channels
Dual-channel
Microphone in
Yes
RAID support
Yes
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Component for
PC
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Products per shipping (inner) case
1 pc(s)
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Screws included
Yes
Warranty period
3 year(s)
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID levels
0, 1, 10
Depth
244 mm
Height
35 mm
RAM-Slots
4
MB-Socket
AM5
Product colour
Dark brown
Cooling type
Passive
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
Motherboard form factor
micro ATX
USB 2.0 connectors
2
Number of chassis fan connectors
2
Package depth
265 mm
Package height
54 mm
Package width
265 mm
Number of storage drives supported
6
MB-Format
micro-ATX
PS/2 ports quantity
1
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Width
244 mm
Ethernet interface type
2.5 Gigabit Ethernet
Weight
1.05 kg
Motherboard chipset
AMD B840
PCI Express x16 (Gen 3.x) slots
1
LAN controller
Realtek RTL8125
Number of RGB LED pin headers
3
1st M.2 largest key size
2580
2nd M.2 largest key size
25110
Supported memory clock speed (max)
8200 MHz
Supported memory clock speeds
8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Package weight
1.13 kg
