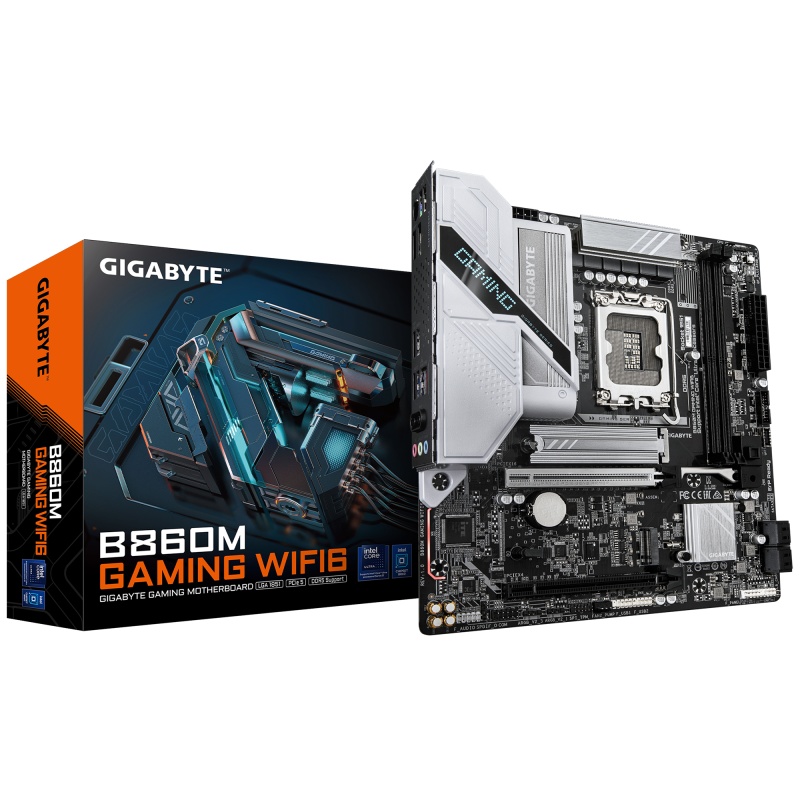

MB Gigabyte B860M GAMING WIFI6E
RON 893.00
(VAT included)
shipping cost is not included
How can we help?
Details
SKU
B860M GAMING WIFI6
EAN
4719331866891
Categories
Brand
Wi-Fi
Yes
BLUETOOTH
Yes
Cooling type
Passive
Weight
1.23 kg
Product colour
Brown
Component for
PC
Package depth
268 mm
Package height
68 mm
Depth
225 mm
Width
244 mm
Height
35 mm
Package width
270 mm
Package weight
1.29 kg
PCI Express x16 (Gen 5.x) slots
1
Audio Chip
Realtek ALC897
Maximum internal memory
128 GB
Bluetooth version
5.3
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Ethernet LAN
Yes
USB 2.0 ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPorts quantity
1
Line-in
Yes
DisplayPort version
2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Processor manufacturer
Intel
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Battery capacity
220 mAh
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
HDMI version
2.1
Battery weight
3 g
Memory slots type
DIMM
PCI Express x16 (Gen 4.x) slots
1
VGA (D-Sub) ports quantity
0
Memory channels
Dual-channel
Microphone in
Yes
RAID support
Yes
Number of HDDs supported
4
Ethernet interface type
2.5 Gigabit Ethernet
RAID levels
0, 1, 5, 10
Battery type
CR2032
Audio output channels
7.1 channels
Batteries included
Yes
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Maximum resolution
4096 x 2160 pixels
Lithium weight per battery
0.07 g
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
Motherboard form factor
micro ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Motherboard chipset family
Intel
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Products per shipping (inner) case
1 pc(s)
Number of memory slots
2
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Supported memory clock speeds
5600,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800,9066 MHz
Supported memory clock speed (max)
9066 MHz
ECC сompatibility
ECC & Non-ECC
LAN controller
Realtek RTL8125
Antenna included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
WiFi-AP antenna jack
2
Headphone outputs
1
Supported storage drive types
HDD & SSD
Number of storage drives supported
6
Supported storage drive interfaces
M.2, SATA III
Thunderbolt headers
2
