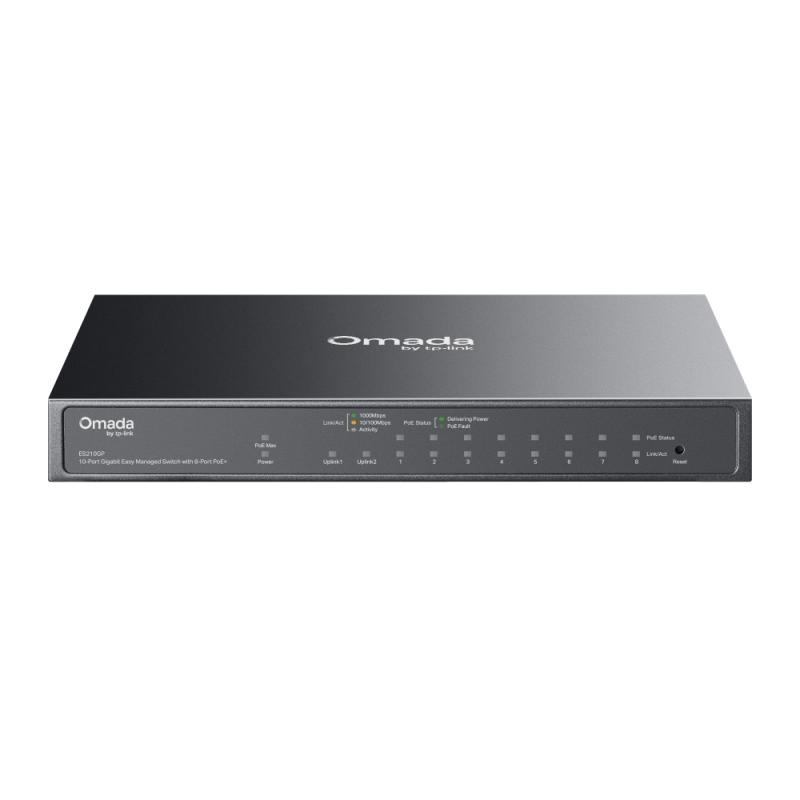

Omada 10Port Gigabit Switch
RON 581.00
(VAT included)
shipping cost is not included
Buy now, pay later
Show more
How can we help?
Details
SKU
ES210GP
EAN
1210002609722
Categories
Brand
Rackable
No
Stackable
No
Form factor
DIN rail
LAN-Port-Type
FastEthernet
LAN-Ports
8
Redundant-PSU
No
Operating temperature (T-T)
0 - 40 C
Product colour
Black
Storage temperature (T-T)
-40 - 70 C
Depth
126 mm
Width
209 mm
Height
26 mm
Ethernet LAN data rates
10,100,1000 Mbit/s
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Cables included
Power
Rack mounting
Yes
LED indicators
Yes
Quick start guide
Yes
DC input voltage
53 V
Power source
DC
Input current
1.31 A
Quality of Service (QoS) support
Yes
IGMP snooping
Yes
Web-based management
Yes
Jumbo frames support
Yes
Jumbo frames
15000
Packet buffer memory
0.5 MB
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Forwarding rate
1.488 Mpps
VLAN support
Yes
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Switch layer
L2
Cloud-managed
Yes
Switch type
Managed
Multicast support
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
10G support
No
Port mirroring
Yes
Power over Ethernet (PoE)
Yes
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
DHCP features
DHCP client
Number of VLANs
4000
Auto-negotiation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Link aggregation
Yes
Basic switching RJ-45 Ethernet ports quantity
10
Total Power over Ethernet (PoE) budget
63 W
Flow control support
Yes
Loop protection
Yes
Store-and-forward
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Transmission distance (max)
0.25 km
Combo SFP ports quantity
1
Power over Ethernet (PoE) type supported
PoE+
